Product Description

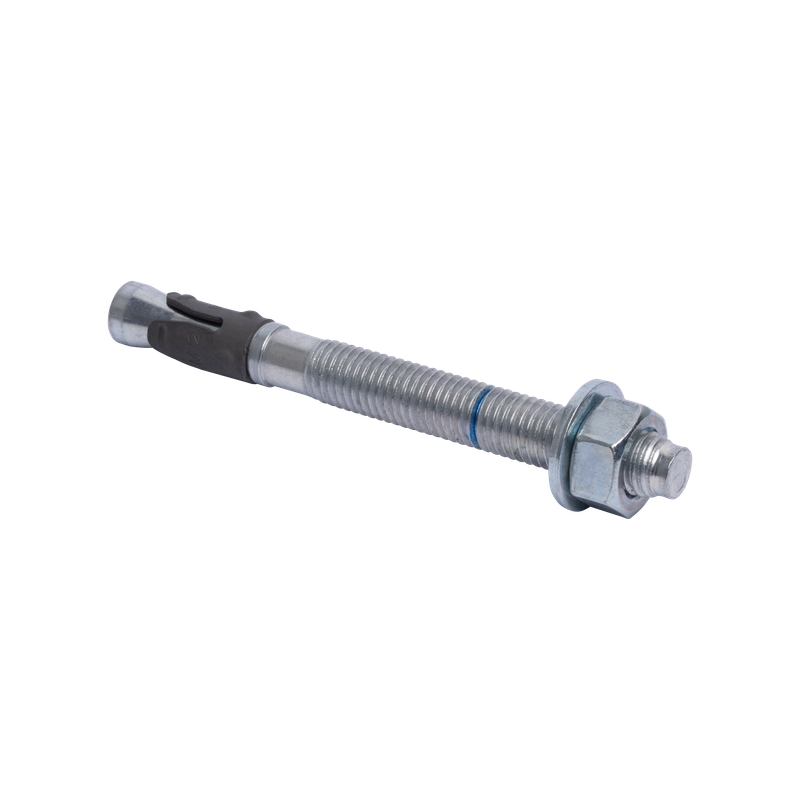

The WT1 is the ultimate-performance zinc-plated throughbolt anchor for use in cracked and non-cracked concrete under normal and seismic C1 or C2 conditions.

Features

ETA according to EAD 330747-00-0601 for use in cracked and non-cracked concrete (option 1)
Simple and quick installation procedure.
For medium to heavy loads.
Can be installed as pre-fixing (before application of a fixing plate) or as through-fixing (through hole of the fixing plate).
Fire resistance class R30-R120 for design of anchorages under exposure to fire.
Compliance with VdS CE 4001:2014-04 (05) and VdS VdS CE 4001:2018-01 (06) for applications with sprinkler systems in concrete elements.
Non-cracked concrete
Cracked concrete

Specifications

Material	Steel, zinc plated
Standards	Array
Surface Protection	Zinc plated

Variants

Part No.	Description	d₀ (mm)	h₁ (min)	hmin (mm)	hnom (mm)	hef(mm)	tfix, max	Tinst (Nm)
DMC60888075	WT M8x75	8	60	100	55	45	10	20
DMC60888100	WT M8x100	8	60	100	55	45	20	20
DMC60881075	WT M10x75	10	75	120	68	70	10	30
DMC608810100	WT M10x100	10	75	120	68	70	20	30
DMC608810125	WT M10x125	10	75	120	68	70	25	30
DMC608810150	WT M10x150	10	75	120	68	70	50	30
DMC608810200	WT M10x200	10	75	120	68	70	50	30
DMC608812100	WT M12x100	12	85	140	80	70	10	50
DMC608812125	WT M12x125	12	85	140	80	70	25	50
DMC608812150	WT M12x150	12	85	140	80	70	50	50
DMC608812200	WT M12x200	12	85	140	80	70	50	50
DMC608816100	WT M16x100	16	105	170	97	85	20	100
DMC608816125	WT M16x125	16	105	170	97	85	20	100
DMC608816150	WT M16x150	16	105	170	97	85	25	100
DMC608816200	WT M16x200	16	105	170	97	85	50	100

Applications
