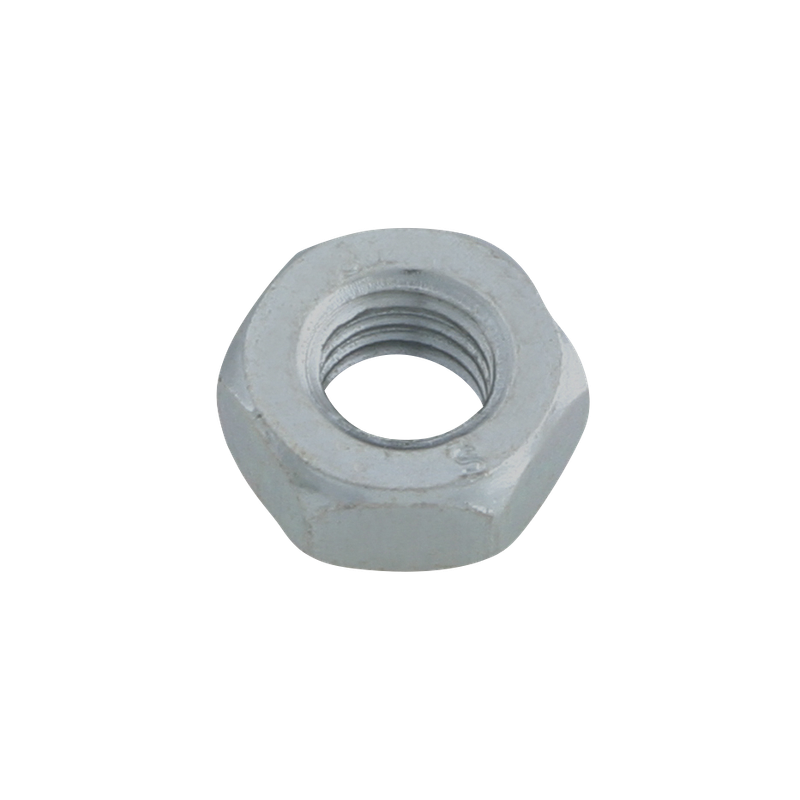

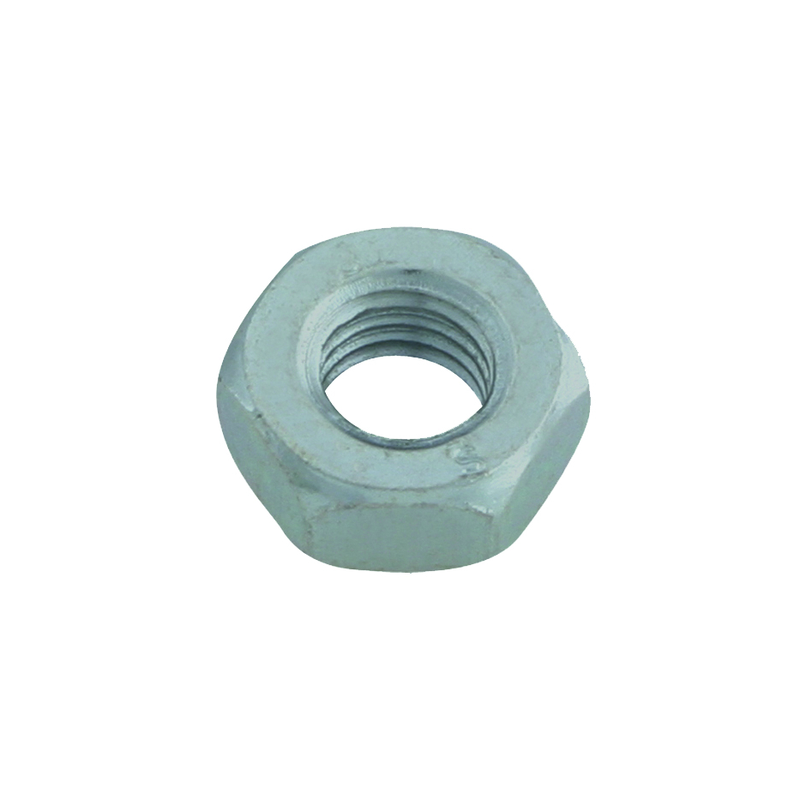

A hexagonal nut is a fastener with a six-sided head, used to tighten bolts and screws. It is commonly used in various construction and mechanical applications.
DIN934 Standard
Steel
Zinc Plated
| Part No. | H (mm) | e (mm) | G |
|---|---|---|---|
| DMC33106 | 4.9 | 11.0 | M6 |
| DMC33108 | 6.4 | 14.4 | M8 |
| DMC33110 | 8.0 | 17.8 | M10 |
| DMC33112 | 10.4 | 20.0 | M12 |
| DMC33116 | 14.1 | 26.7 | M16 |
| DMC33120 | 16.9 | 32.9 | M20 |
| DMC33124 | 20.2 | 39.6 | M24 |
