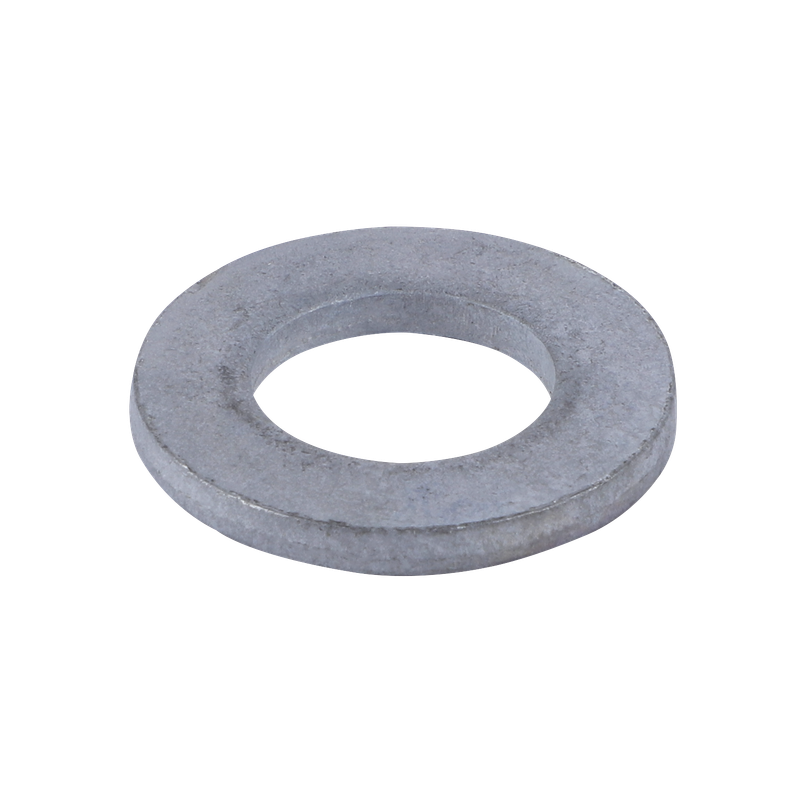

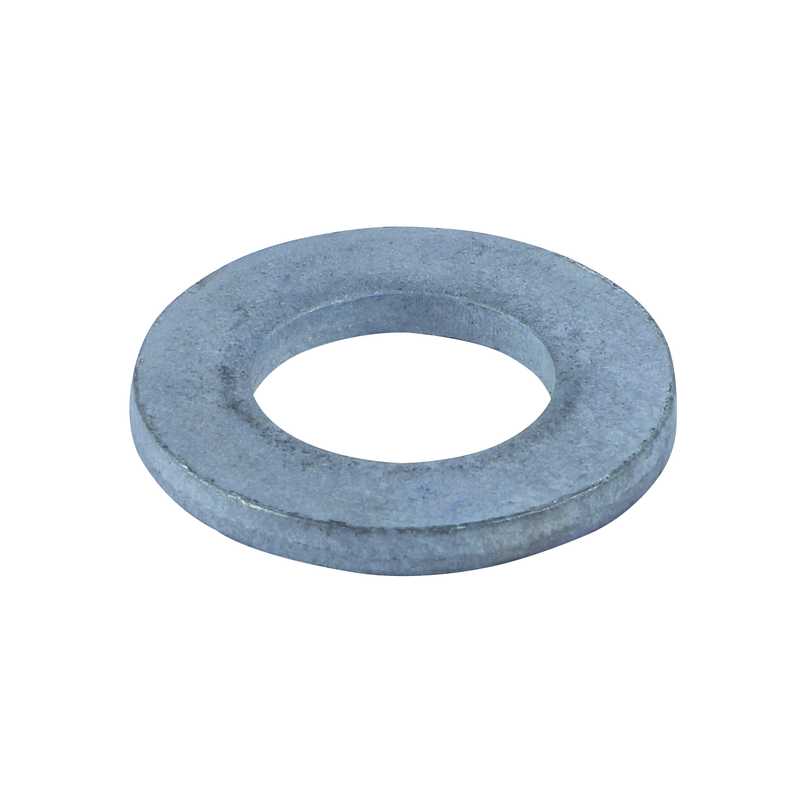

Flat washers are used to distribute the load of a threaded fastener, such as a bolt or nut, and prevent damage to the surface being fastened. They are commonly used in various applications to provide a smooth bearing surface and reduce friction.
DIN125 Standard
Steel
Zinc Plated
| Part No. | s (mm) | D (mm) | d1 (mm) |
|---|---|---|---|
| DMC33206 | 1.6 | 12.5 | 6.4 |
| DMC33208 | 1.6 | 17.0 | 8.4 |
| DMC33210 | 2.0 | 21.0 | 10.5 |
| DMC33212 | 2.5 | 24.0 | 13.0 |
| DMC33216 | 3.0 | 30.0 | 17.0 |
| DMC33218 | 3.0 | 34.0 | 19.0 |
| DMC33220 | 3.0 | 37.0 | 21.0 |
| DMC33222 | 3.0 | 39.0 | 23.0 |
| DMC33224 | 4.0 | 44.0 | 25.0 |
