Product Description

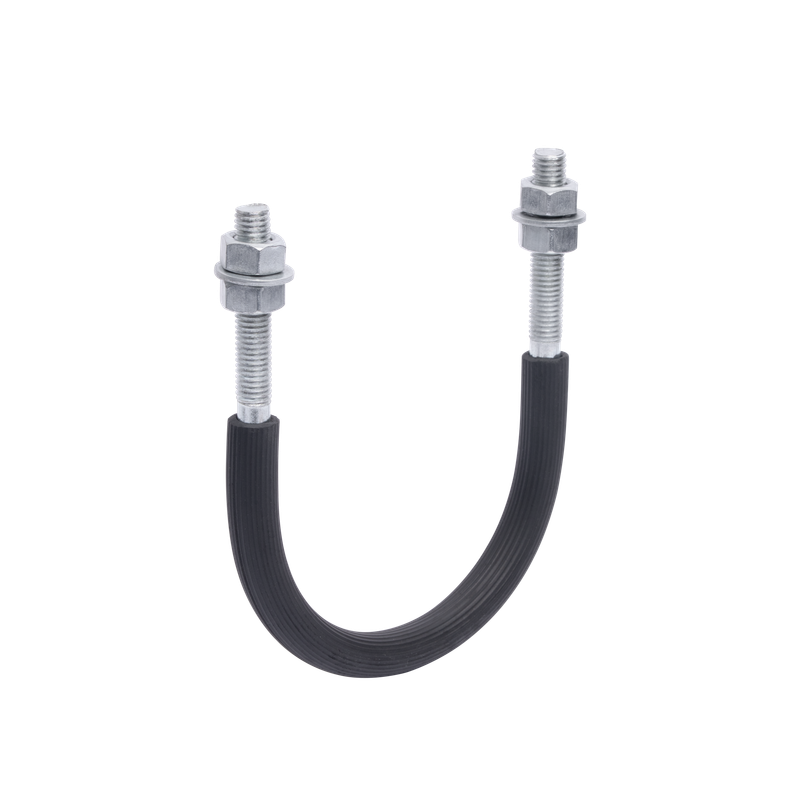

The EPDM Lined U Bolt is designed for high load capacity and noise insulation. It is used to secure pipes and tubes, with a temperature resistance from -20°C to +110°C.

Features

High load capacity due to one piece design
Supplied with two or four nuts and two washers
Material:
Steel
Electro galvanized as per ASTM B633 Standards, BS 1706 FE/ZN 12
Noise insulating lining, EPDM, black
Designed to meet MSS Standard SP-58, type 24 and and SP-69
Special U bolts with longer tangents and threads available on request
Temperature resistance from -20°C temp to +110°C

Specifications

Material	Steel
Standards	Array
Surface Protection	Electro Galvanized

Variants

Part No.	D (mm)	D (")	G (mm)	H (m)	Lm1 (mm)	Fa,z (N)	Pack 1
DMC744022L	22	1/2"	M10	78	50	6,000	300
DMC744028L	28	3/4"	M10	84	50	6,000	250
DMC744035L	35	1"	M10	90	50	6,000	250
DMC744042L	42	11/4"	M10	98	50	6,000	250
DMC744048L	48	11/2"	M10	106	50	6,000	200
DMC744060L	60	2"	M10	115	50	6,000	150
DMC744075L	75	21/2"	M12	133	50	10,000	100
DMC744090L	90	3"	M12	146	50	10,000	100
DMC744100L	100	31/2"	M12	156	50	10,000	100
DMC744110L	110	-	M12	166	50	10,000	100
DMC744115L	115	4"	M12	171	50	10,000	70
DMC744140L	140	5"	M12	196	50	10,000	60
DMC744160L	160	-	M12	214	50	10,000	60
DMC744168L	168	6"	M12	220	50	10,000	60
DMC744219L	219	8"	M16	301	50	10,000	25
DMC744273L	273	10"	M20	379	100	32,000	10
DMC744324L	324	12"	M20	430	100	32,000	10
DMC744356L	356	14"	M20	462	100	32,000	10
DMC744406L	406	16"	M20	512	100	32,000	10
DMC744457L	457	18"	M24	563	100	45,000	5
DMC744508L	508	20"	M24	614	100	45,000	5
DMC744610L	610	24"	M24	715	100	45,000	5
