Product Description

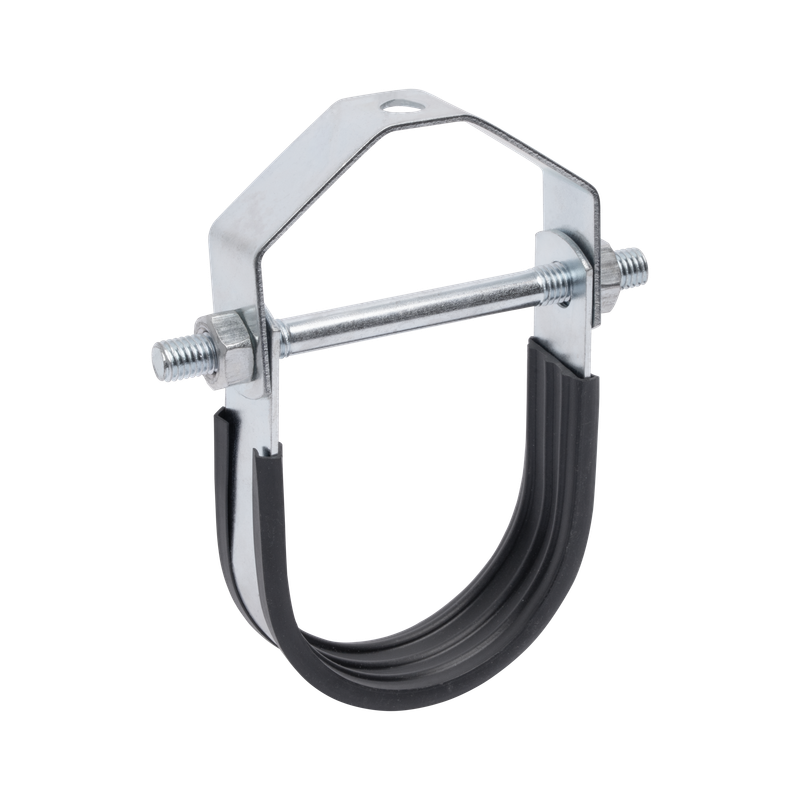

The EPDM Lined Standard Clevis Hanger is designed for supporting pipes while providing noise insulation and vibration dampening due to its EPDM lining. It is suitable for various MEP applications.

Features

Designed for different MEP application
Design permits vertical adjustments of pipe after installation
Hanger load nut above clevis must be tightened securely to ensure proper hanger performance
Material:
Steel
Noise insulating lining, EPDM, black
Designed to meet MSS Standard SP-58, type 1 and and SP-69
Noise reduction up to 18dB (A)
Temperature resistance from -20 °C temp to +110°C
Electrogalvanized as per ASTM B 633
Standards, BS 1706 FE/ZN 12

Specifications

Material	Steel, EPDM rubber
Standards	Array
Surface Protection	Electrogalvanized

Variants

Part No.	(mm)	(")	(mm)	(mm)	(N)	Pack 1
DMC932022	10	1/2"	10	10	2,500	200
DMC932028	10	3/4"	10	10	2,500	200
DMC932035	10	1"	10	10	2,500	170
DMC932040	10	11/4"	10	10	2,500	150
DMC932048	10	11/2"	10	10	2,500	100
DMC932060	10	2"	10	10	2,500	70
DMC932075	10	21/2"	10	10	3,000	60
DMC932090	10	3"	10	10	3,000	50
DMC932100	10	31/2"	10	10	3,000	50
DMC932115	10	4"	10	10	3,000	25
DMC932140	12	5"	12	12	3,000	30
DMC932168	12	6"	12	12	4,000	25
DMC932219	12	8"	12	12	4,000	20
DMC932273	16	10"	16	16	4,000	5
DMC932323	20	12"	20	20	5,500	3
DMC932355	20	14"	20	20	5,500	3
DMC932406	24	16"	24	24	12,000	3
DMC932457	24	18"	24	24	12,000	3
DMC932508	30	20"	30	30	15,000	2
DMC932610	30	24"	30	30	15,000	1
DMC932755	30	30"	30	30	15,000	1

Applications
