Product Description

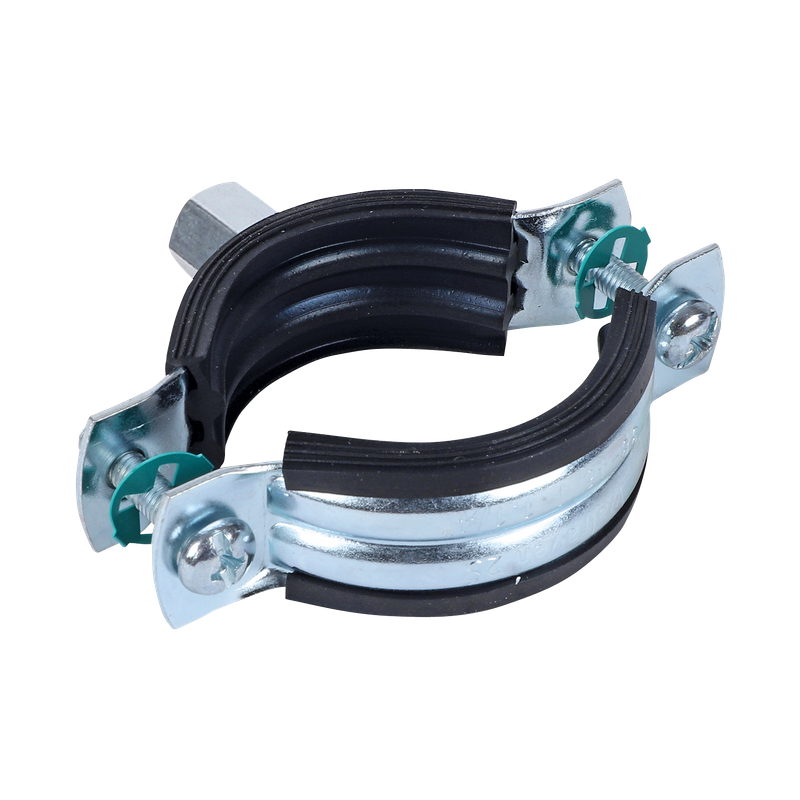

The EPDM Lined Split Clamp is designed for supporting pipes while providing noise reduction and vibration dampening due to its EPDM lining. It is suitable for horizontal and vertical applications.

Features

Lock bolts with combi cross recessed head
For horizontal and vertical applications
Profiled for extra strength
Screws secured with anti-loss washer
Material:
Steel
Electrogalvanized as per ASTM B 633 Standards, BS 1706 FE/ZN 12
Temperature resistance from -30 °C to +120 °C
Noise insulating lining, EPDM, black noise reduction up to 18dB (A)
Age resistant lining

Specifications

material	steel, EPDM
standards	Array
surface_protection	electrogalvanized

Variants

Part No.	D (mm)	D (")	Dia (mm)	G (mm)	B (mm)	H (m)	h (mm)	Fa,z (N)	Pack 1
DMC315018	15 - 19	3/8"	15	M8	56.2	35.1	20.8	850	450
DMC315022	20 - 24	1/2"	22	M8	61.9	41.1	23.8	850	400
DMC315028	25 - 30	3/4"	28	M8	68.9	48.1	27.3	850	350
DMC315035	32 - 36	1"	35	M8	75.2	54.1	30.3	850	300
DMC315040	38 - 43	1 1/4"	42	M8	83.8	64.0	35.3	1250	250
DMC315048	47 - 51	1 1/2"	48	M8	93.1	73.0	39.8	1250	200
DMC315054	53 - 58	-	54	M8	99.3	79.0	42.8	1250	200
DMC315060	60 - 64	2"	60	M8	102.3	80.9	43.7	1250	125
DMC315063	63 - 66	-	63	M8	105.8	85.0	45.8	1250	125
DMC315070	68 - 72	-	70	M8	117.6	93.9	50.2	2130	125
DMC315075	74 - 80	2 1/2"	75	M8/M10	123.9	109.4	62.7	2130	200
DMC315083	81 - 86	-	83	M8/M10	129.9	115.4	65.7	2130	200
DMC315090	88 - 92	3"	90	M8/M10	138.6	119.5	67.8	2130	200
DMC315100	100 - 105	3 1/2"	100	M8/M10	151.2	132.1	74.1	2130	150
DMC315110	109 -112	-	110	M8/M10	159.1	137.2	76.6	2130	150
DMC315115	113 - 118	4"	115	M8/M10	164.3	145.5	80.8	2130	150
DMC315125	125 - 130	-	125	M8/M10	176.4	159.5	87.8	2500	100
DMC315133	131 -137	-	133	M8/M10	183.1	166.1	91.1	2500	100
DMC315140	140 - 142	5"	140	M8/M10	189.8	172.5	94.3	2500	100
DMC315150	149 -153	-	150	M8/M10	199.7	182.5	99.3	2500	100
DMC315160	159 -166	6"	160	M8/M10	211.9	195.1	105.6	2500	80
DMC315168	168 - 172	-	168	M8/M10	219.6	204.5	111.3	2500	80
DMC315200	200 - 212	8"	200	M8/M10	257.1	243.1	130.6	2500	50
