Product Description

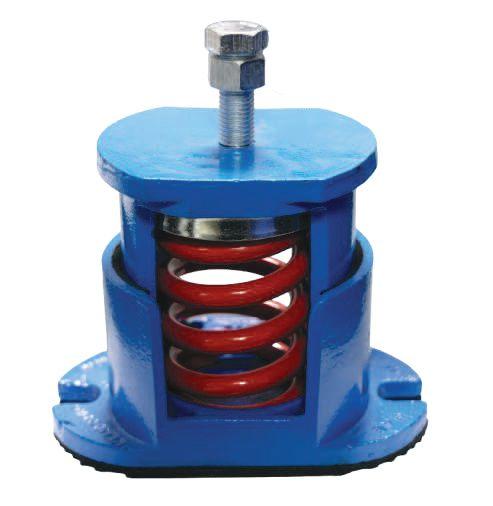

Diamond Housed Spring Mount - DMHS
Spring isolator enclosed in a protective housing for enhanced durability and stable performance under varying loads.

Features

Model Name - DMHS1/DMHS1A/DMHS2
Housed Spring Mounts are designed to provide horizontal stability,
High load capacity & protective spring enclosure.
Deflection is at rated load having a tolerance of 15%.
Application examples include: chiller, AHU's, pumps, centrifugal / axial fans, condensing units, roof top packaged units, reciprocating compressors, DG sets, punch presses, drop hammers & floor pipe supports (normally at first few pipe support points leading from isolated equipments).
All mounts have external leveling arrangement, capable of compensating for full static deflection.
Inner walls of lower casing have resilient rubber snubbers.
Springs are powder coated.
All mounts have (APROX.) 50% overload capacity.
Designed to meet BS1726, class B.
Mountings must be adjusted so that upper housing clears lower housing by at least 6mm & not more than 12mm.

Applications

DMHS
Chillers and large HVAC systems
Pumps and compressors
Centrifugal and axial fans
Rooftop packaged units
DG sets, punch presses, and industrial machinery
Pipe supports near vibration-sensitive equipment

Downloads & Resources

PDFDIAMOND VIBRATION ISOLATORS Catalogue11.36 MB
