Product Description

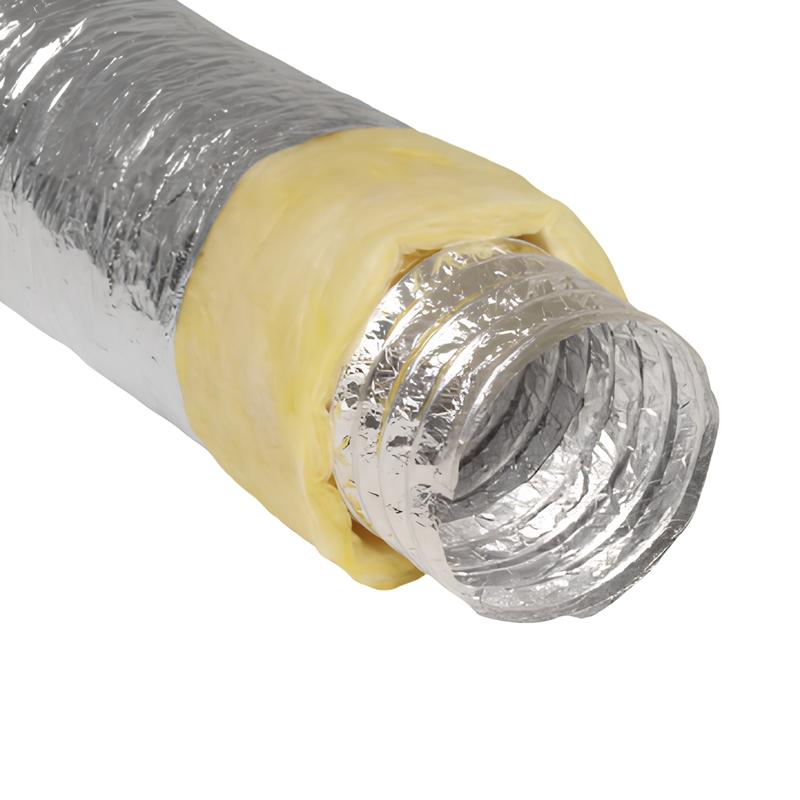

REINFORCED Insulated Flexible Duct

Features

Triple laminated aluminium foil polyester inner core for high strength and flexibility
Corrosion-resistant steel wire helix for durability
Reinforced scrim outer jacket for extra strength and moisture protection
Excellent thermal insulation with low heat loss
Fire rated as per BS 476 and ASTM E84 standards
Lightweight and easy to install
Suitable for high velocity and medium pressure HVAC systems

Specifications

Model	ADIR2
Inner Core	Triple laminated aluminium foil polyester with steel wire helix
Outer Jacket	Reinforced metallized polyester with scrim
Diameter Range	4" to 20" (100mm to 508mm)
Standard Length	25 ft
Insulation Density	16 kg/m³ / 24 kg/m³
Insulation Thickness	25mm / 38mm / 50mm

Downloads & Resources
