Product Description

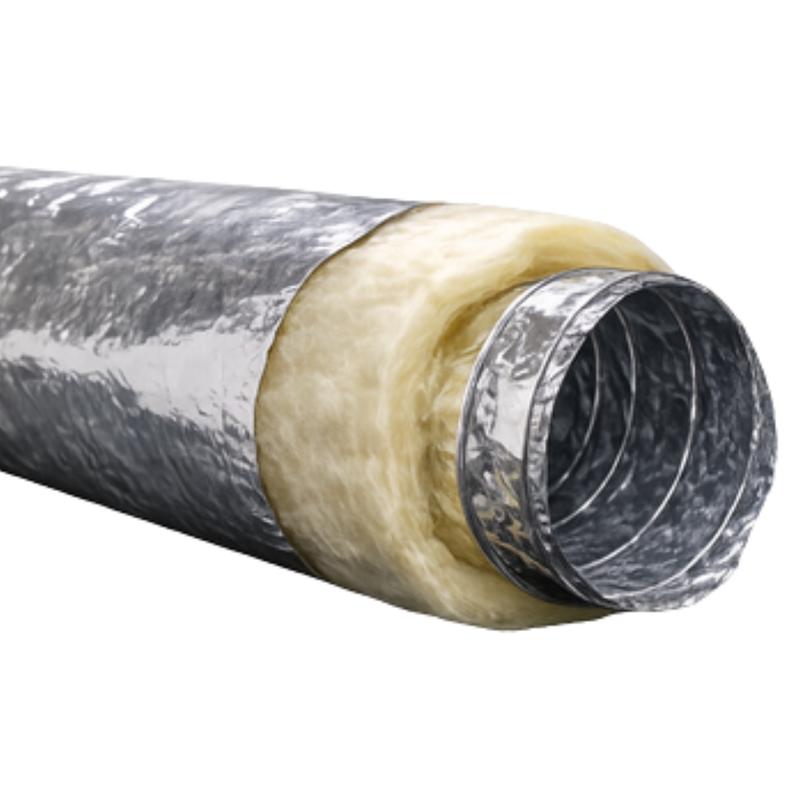

Insulated Flexible Duct

Features

Triple laminated aluminium foil polyester inner core for high strength and durability
Corrosion-resistant steel wire helix for flexibility and shape retention
Metalized polyester outer jacket for improved protection and insulation
Excellent thermal insulation with low thermal conductivity
Fire resistant as per BS 476 and ASTM E84 standards
Lightweight
Flexible and easy to install
Suitable for high air velocity and pressure systems
Wide operating temperature range (-30°C to +150°C)
Energy efficient and reduces heat loss

Specifications

Model	ADI2
Inner Core	Triple laminated aluminium foil polyester with steel wire helix
Outer Jacket	Metalized polyester
Diameter Range	4" to 20" (100mm to 508mm)
Standard Length	25 ft (10 meter)
Insulation Density	16 kg/m³ / 24 kg/m³
Insulation Thickness	25mm / 38mm / 50mm

Applications
