Product Description

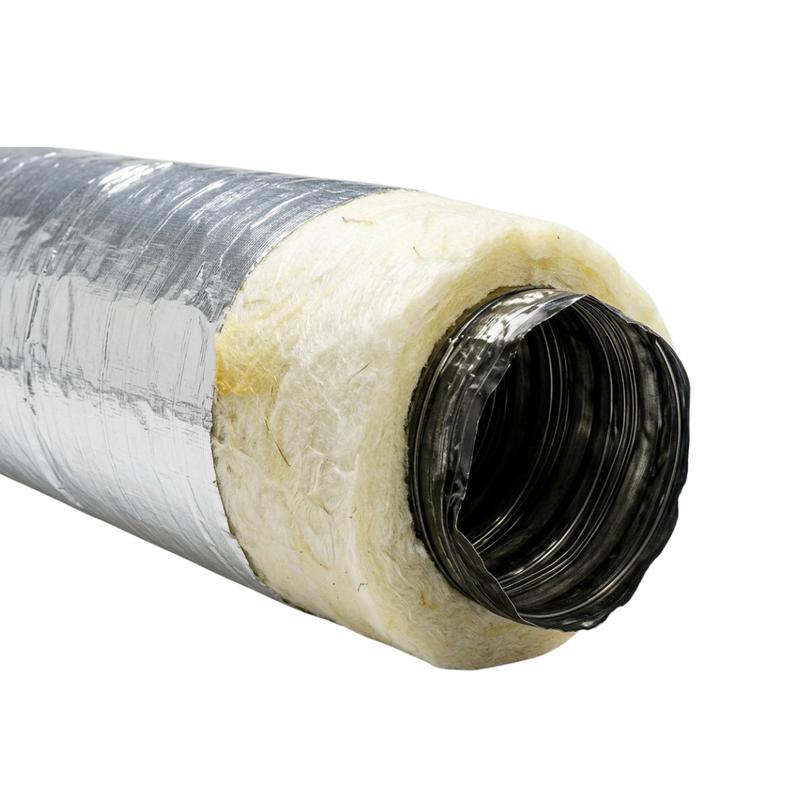

Insulated Flexible Duct

Features

Double laminated polyester inner core with strong adhesive for durability
Steel wire helix for flexibility and shape retention
Strong metallized polyester outer jacket for moisture and vapour protection
Lightweight and easy to install
Good thermal insulation with low heat loss
Fire rated as per BS 476 standards
Suitable for medium pressure HVAC systems

Specifications

Model	ADI1
Inner Core	Double laminated polyester with black adhesive and steel wire helix
Outer Jacket	Metallized polyester
Diameter Range	4" to 20" (100mm to 508mm)
Standard Length	25 ft
Insulation Density	16 kg/m³ / 24 kg/m³
Insulation Thickness	25mm / 38mm

Applications
