Product Description

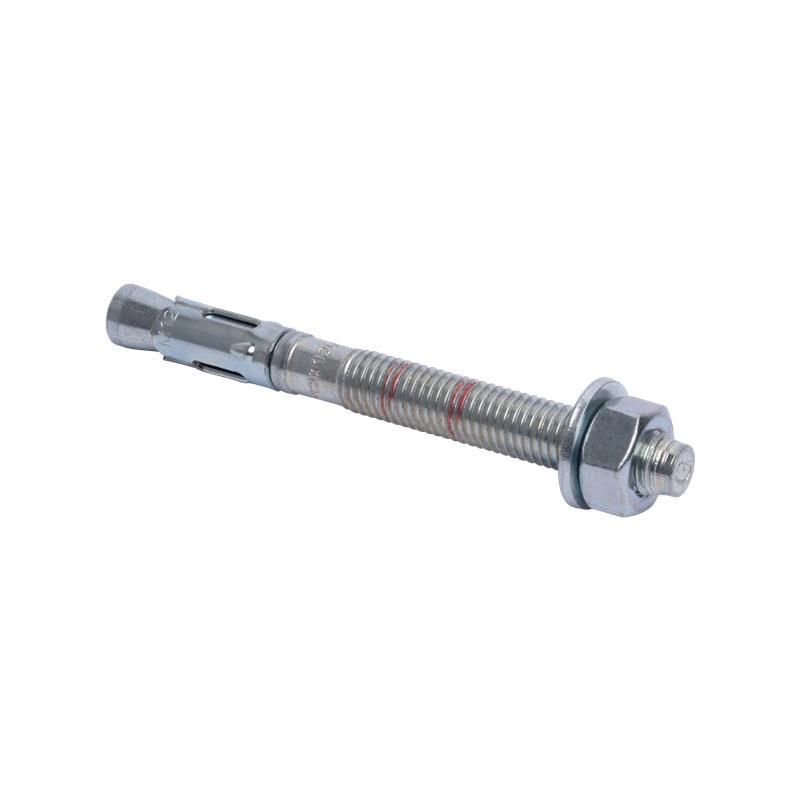

The WT7 SST/A4 is a high-performance stainless steel (A4) throughbolt anchor with two installation depths for use in non-cracked concrete in corrosive environments.

Features

ETA according to EAD 330747-00-0601 for use in non-cracked concrete (option 7)
Simple and quick installation procedure
For medium to heavy loads.
Can be installed as pre-fixing (before application of a fixing plate) or as through-fixing (through hole of the fixing plate).
Two anchoring depths provide maximum installation and design flexibility.

Specifications

Material	Stainless steel (A4)
Standards	Array
Surface Protection

Variants

Part No.	Description	Anchor Size	L (mm)	Box qty (pcs)
608206060	WT7 SST/A4 6x60	6	60	200
608206080	WT7 SST/A4 6x80	6	80	200
608208075	WT7 SST/A4 8x75	8	75	100
608208090	WT7 SST/A4 8x90	8	90	100
608208115	WT7 SST/A4 8x115	8	115	100
608210090	WT7 SST/A4 10x90	10	90	100
608210120	WT7 SST/A4 10x120	10	120	50
608210150	WT7 SST/A4 10x150	10	150	50
608212090	WT7 SST/A4 12x90	12	90	50
608212110	WT7 SST/A4 12x110	12	110	50
608212140	WT7 SST/A4 12x140	12	140	50
608216145	WT7 SST/A4 16x145	16	145	25
608216170	WT7 SST/A4 16x170	16	170	25
608220170	WT7 SST/A4 20x170	20	170	20
608220220	WT7 SST/A4 20x220	20	220	20

Applications
