Product Description

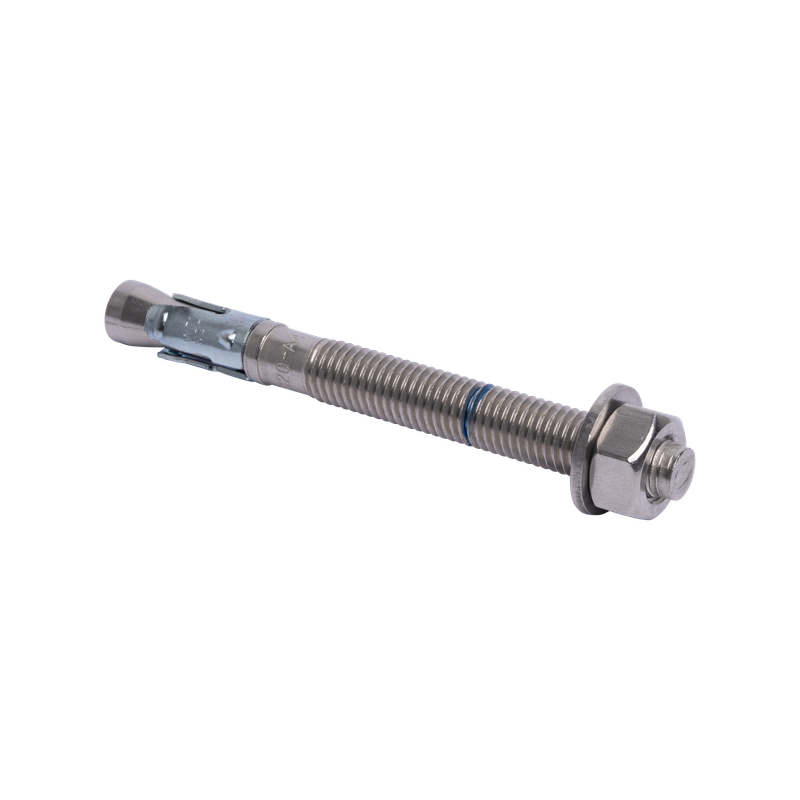

The WT1 SST is a high-performance stainless steel grade A4 throughbolt anchors for use in cracked and non cracked in external atmospheric environment.

Features

Compliance with VdS CE 4001:2014-04 (05) and VdS CE 4001:2018-01 (06) for applications with sprinkler systems in concrete elements
Fire resistance class R30-R120 for design of anchorages under exposure to fire
ETA according to EAD 330747-00-0601 for use in cracked and non cracked concrete (option 1)
Simple and quick installation procedure
For medium to heavy loads
Tested under fire exposure
Applicable in cracked and non-concrete
Applicable from dry internal conditions to external atmospheric exposure
Atmosphere with extreme chemical pollution

Specifications

Material	Stainless Steel A4
Standards	Array

Variants

Part No.	Description	Anchor Size	L (mm)	Box qty (pcs)
608408075	WT1 M8x75	M8	75	100
608408080	WT1 M8x80	M8	80	100
608408095	WT1 M8x95	M8	90	100
608408115	WT1 M8x115	M8	115	100
608410090	WT1 M10x90	M10	90	100
608410105	WT1 M10x105	M10	105	50
608410115	WT1 M10x115	M10	115	50
608410135	WT1 M10x135	M10	135	50
608412100	WT1 M12x100	M12	100	50
608412110	WT1 M12x110	M12	110	50
608412120	WT1 M12x120	M12	120	50
608412130	WT1 M12x130	M12	130	50
608412150	WT1 M12x150	M12	150	50
608412180	WT1 M12x180	M12	180	50
608416145	WT1 M16x145	M16	145	25
608416175	WT1 M16x175	M16	175	25
608416220	WT1 M16x220	M16	220	25
608420170	WT1 M20x170	M20	170	20
608420200	WT1 M20x200	M20	200	20
608608075	WT1 A4 M8 x 75	M8	75
608608095	WT1 A4 M8 x 95	M8	95
608608115	WT1 A4 M8 x 115	M8	115
608608135	WT1 A4 M8 x 135	M8	135
608610090	WT1 A4 M10 x 90	M10	90
608610105	WT1 A4 M10 x 105	M10	105
608610115	WT1 A4 M10 x 115	M10	115
608610135	WT1 A4 M10 x 135	M10	135
608610165	WT1 A4 M10 x 165	M10	165
608610185	WT1 A4 M10 x 185	M10	185
608612110	WT1 A4 M12 x 110	M12	110
608612120	WT1 A4 M12 x 120	M12	120
608612130	WT1 A4 M12 x 130	M12	130
608612150	WT1 A4 M12 x 150	M12	150
608612180	WT1 A4 M12 x 180	M12	180
608612200	WT1 A4 M12 x 200	M12	200
608616125	WT1 A4 M16 x 125	M16	125
608616145	WT1 A4 M16 x 145	M16	145
608616175	WT1 A4 M16 x 175	M16	175
608616190	WT1 A4 M16 x 190	M16	190
608616220	WT1 A4 M16 x 220	M16	220
608620200	WT1 A4 M20 x 200	M20	200
608620240	WT1 A4 M20 x 240	M20	240
608620285	WT1 A4 M20 x 285	M20	285

Applications
