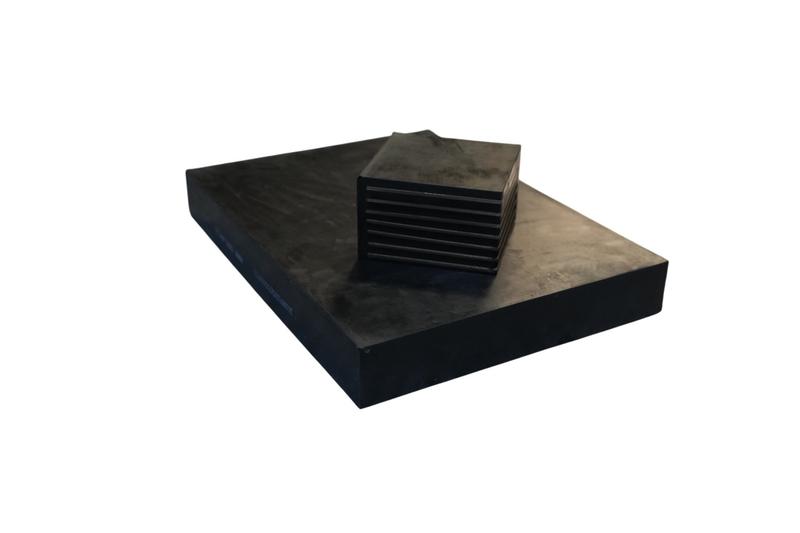

Laminated Rubber bearing consists of multilayer rubber and thin steel sheet via vulcanization and adhesion. It has stuffiest vertical rigidity and is able to reliably transfer the opposite force of the upper structure to piers and it possesses very good elasticity to suit to the turn of the beam end.
Efficiently transfers vertical loads, horizontal forces, and moments from deck to piers.
Allows longitudinal and transverse movements caused by temperature changes, traffic loads, and creep/shrinkage.
Permits rotational movements due to deflection and structural behavior.
Manufactured using high-quality elastomeric rubber, PTFE, and steel for long service life.
Suitable for harsh environments (marine, industrial) with protective coatings and materials.
| Material | NR, SBR, NEOPRENE, EPDM |
|---|
